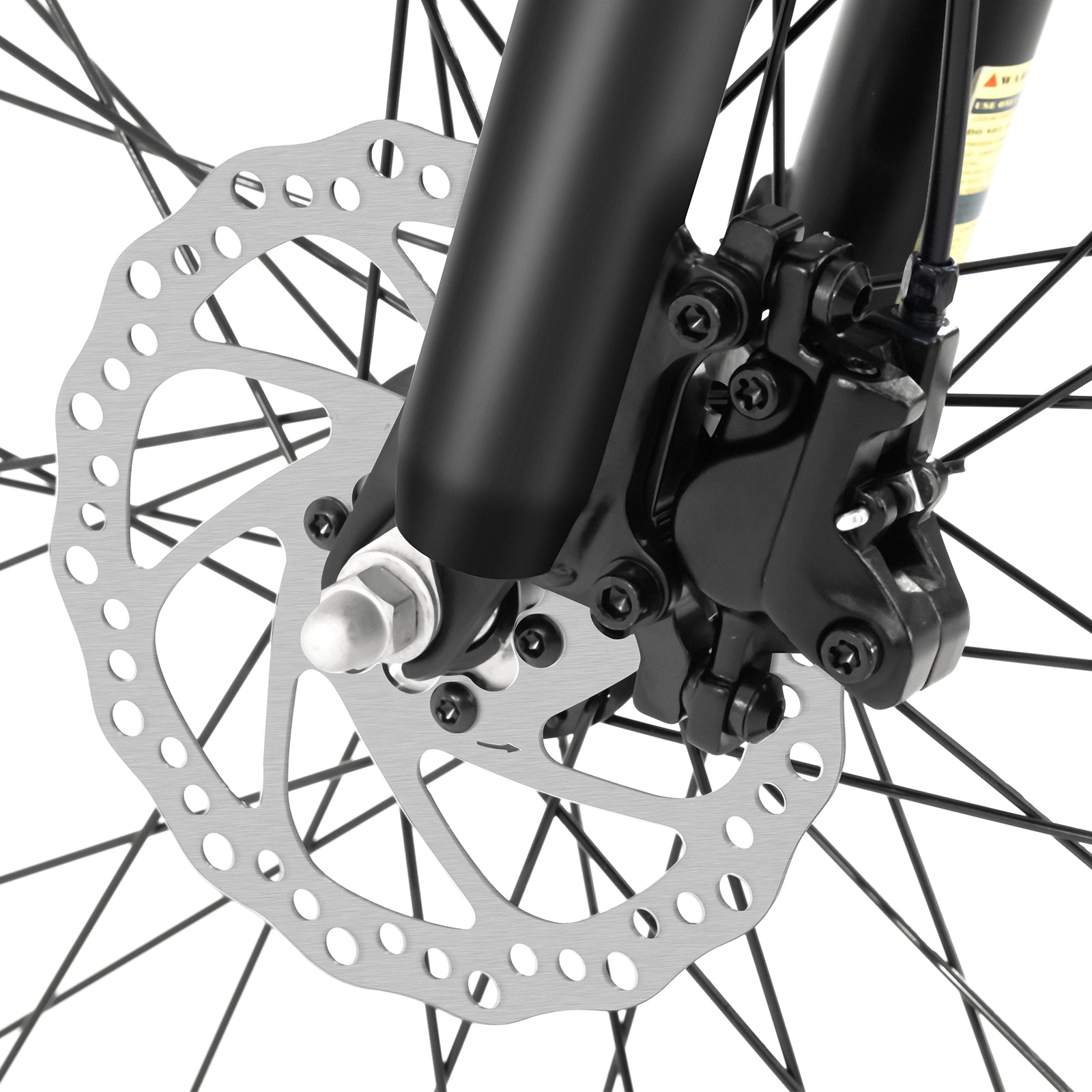

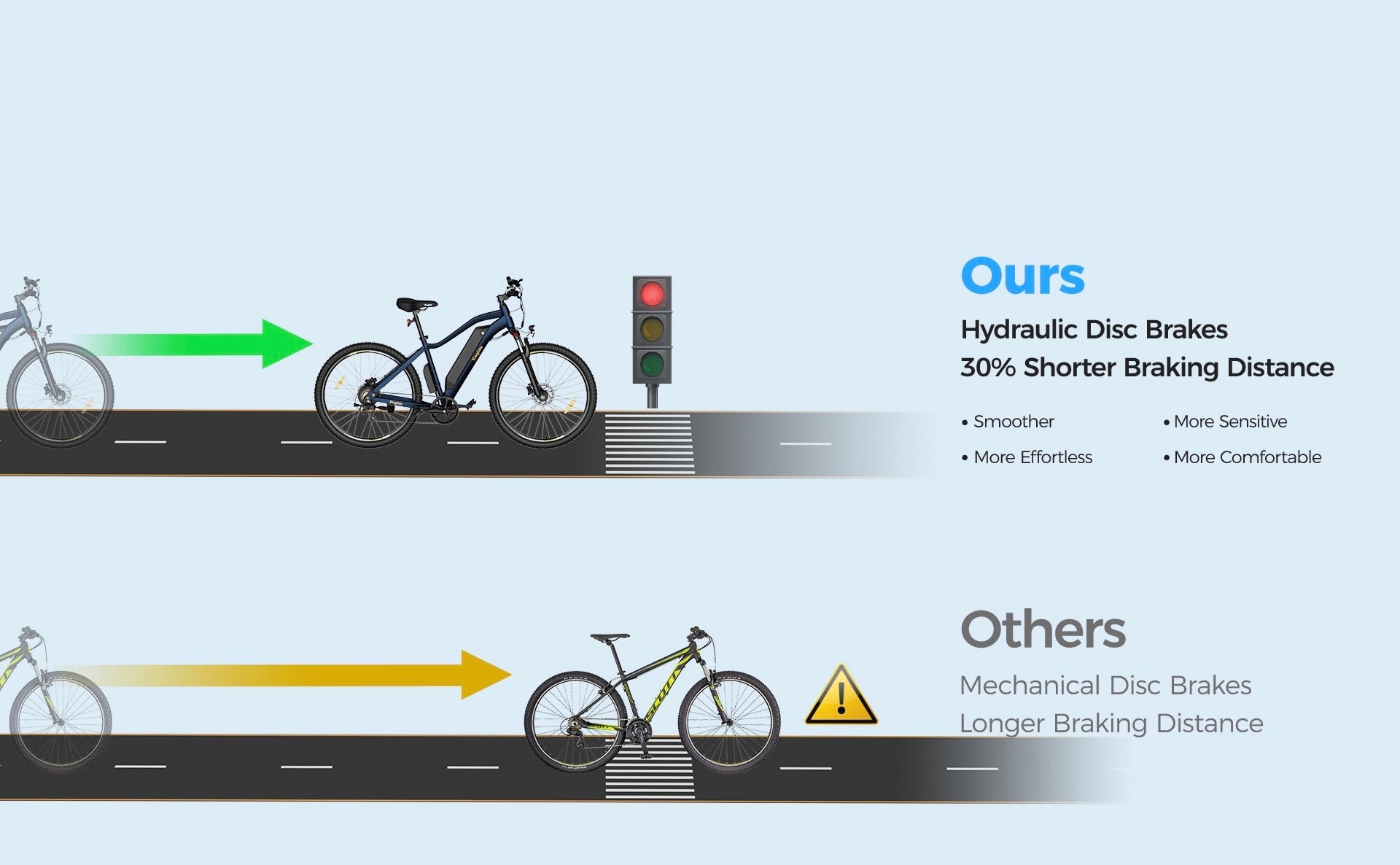

Hydraulic Disc Brakes
120KM Max. Range
250W Mighty Power
Suspension with Lockout

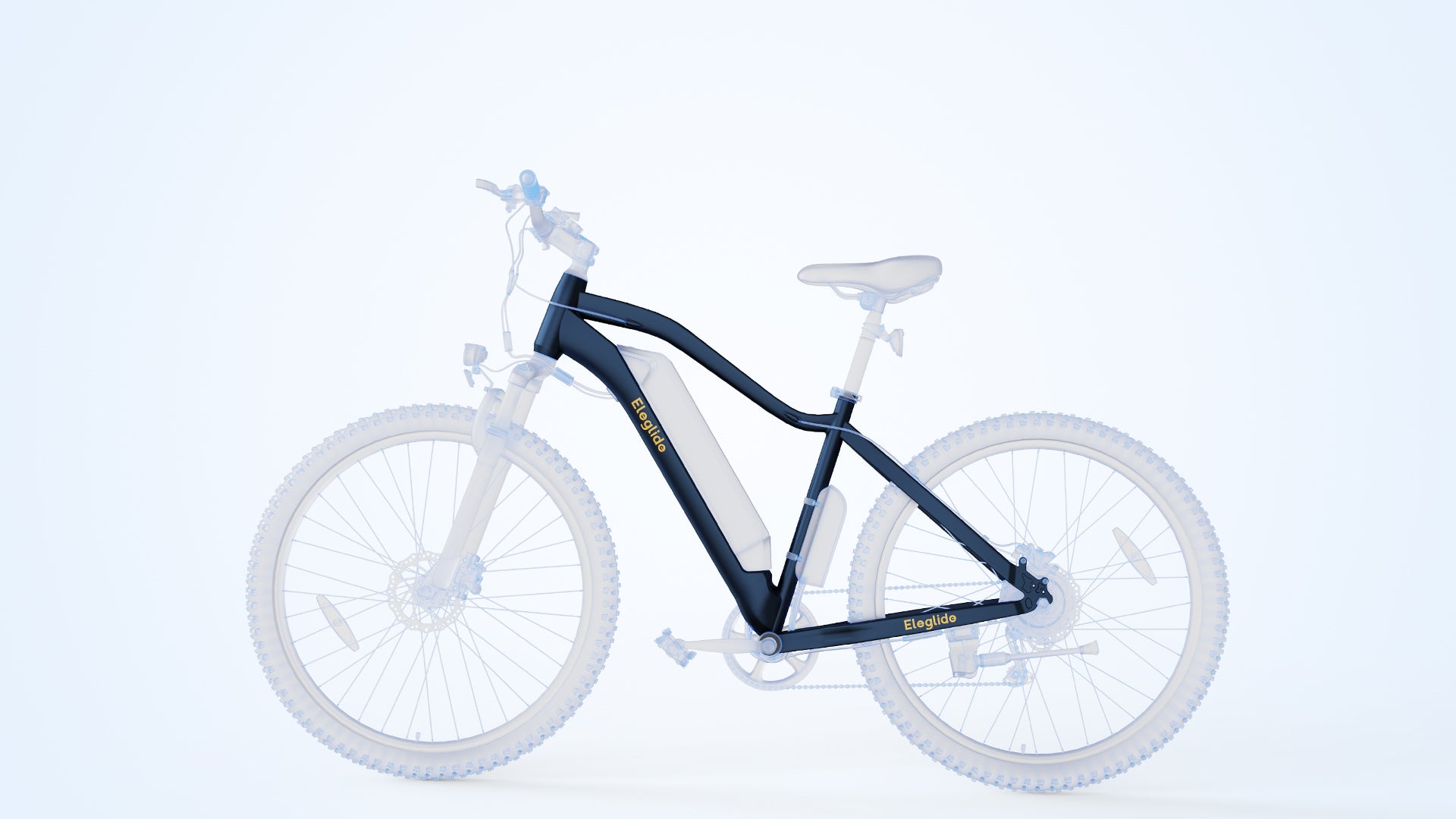

Athletic Frame Design
5-Level Pedal Assist

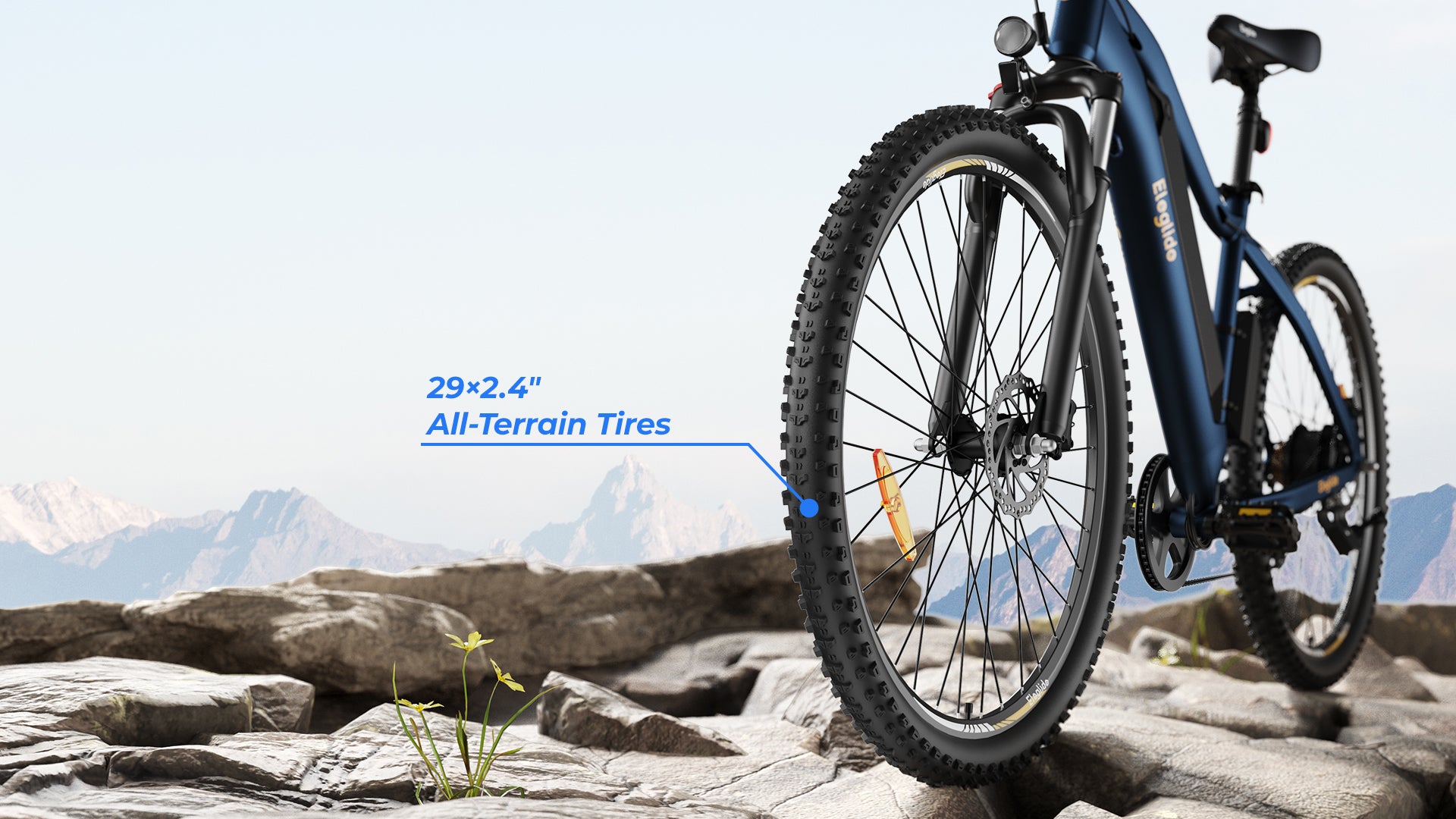

29”x2.4” Pneumatic Tires

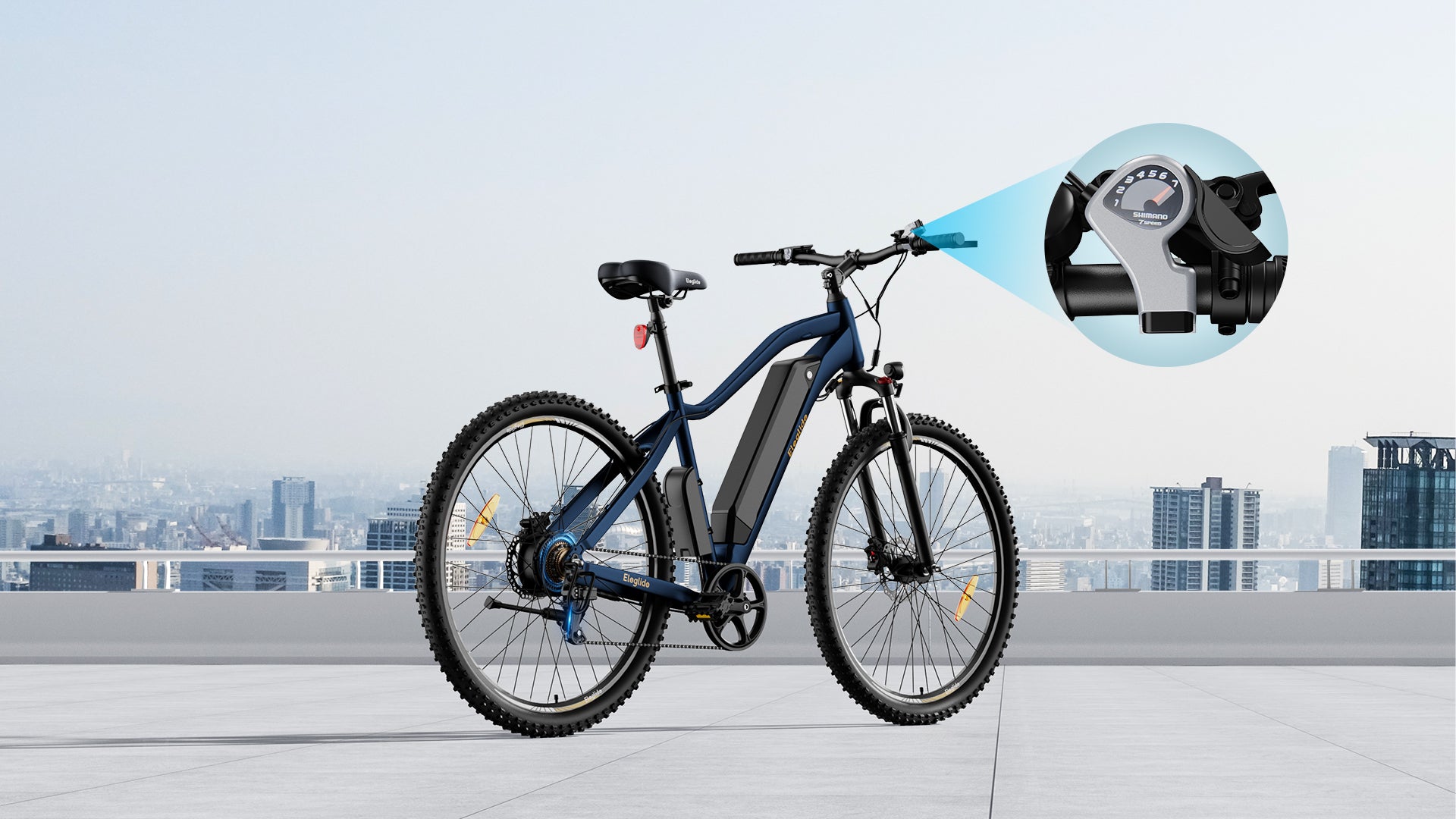

Shimano 7-Speed Gear

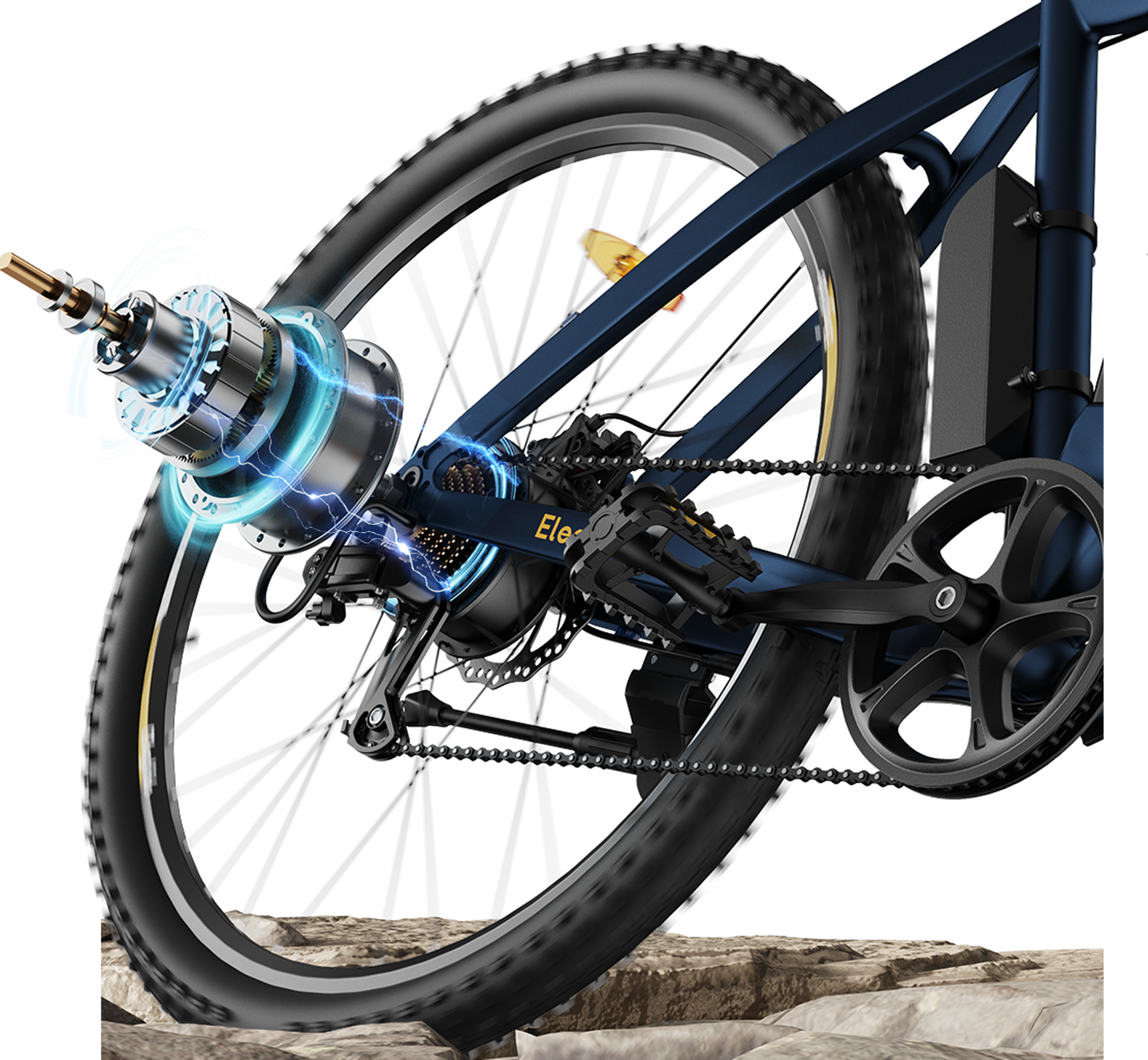

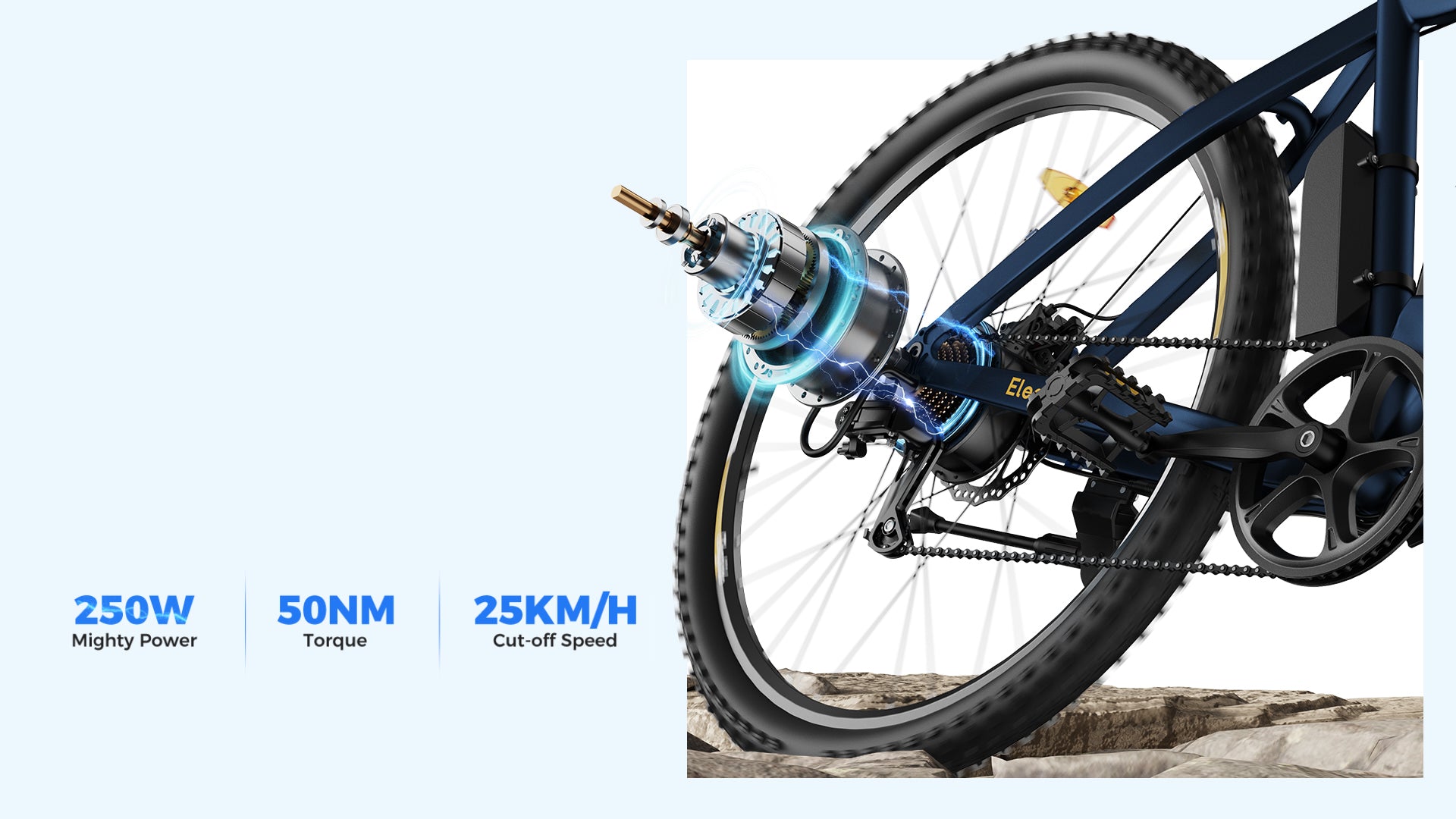

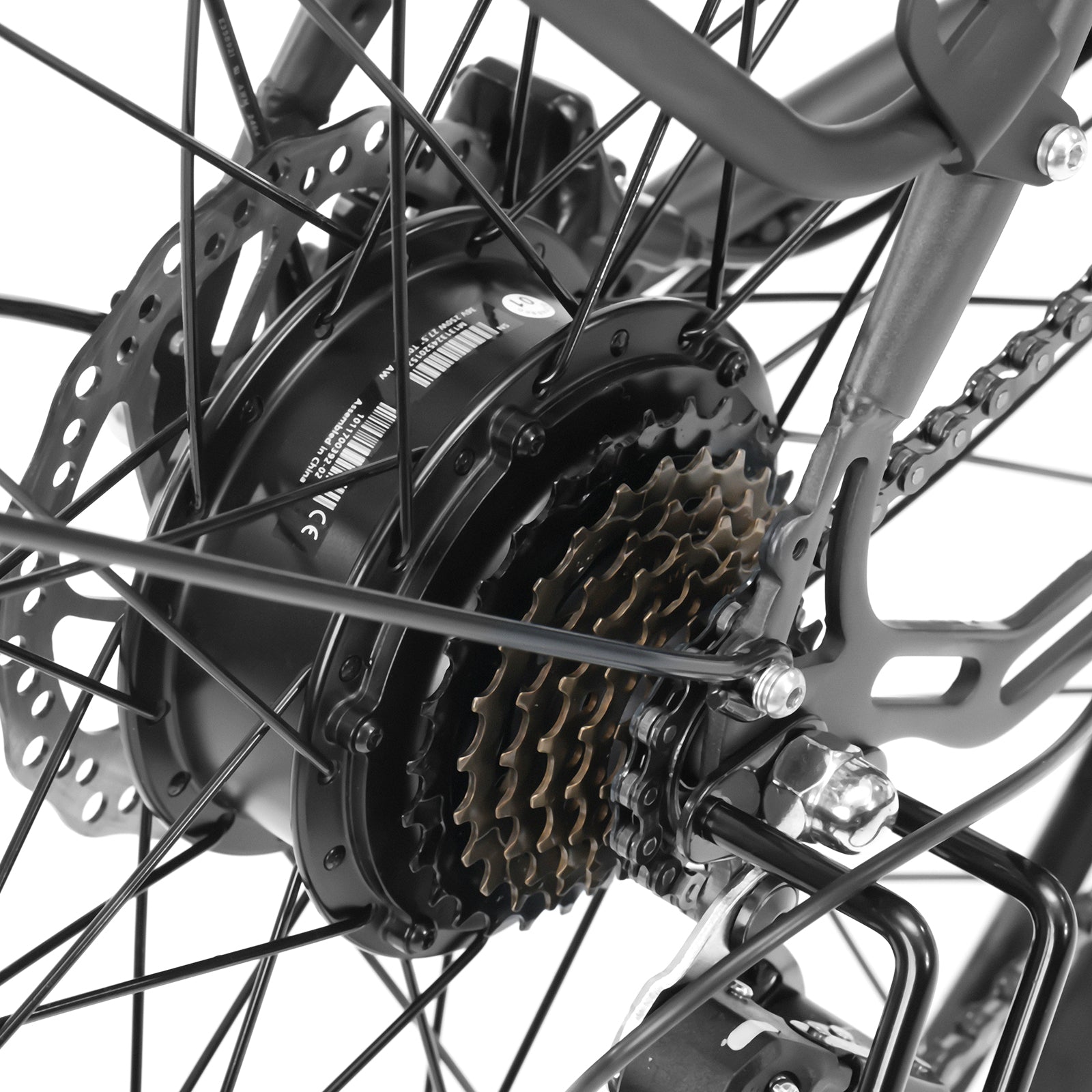

Robust Motor, Mighty Runner

Effortlessly tackles steep climbs and carries loads of up to 120KG.

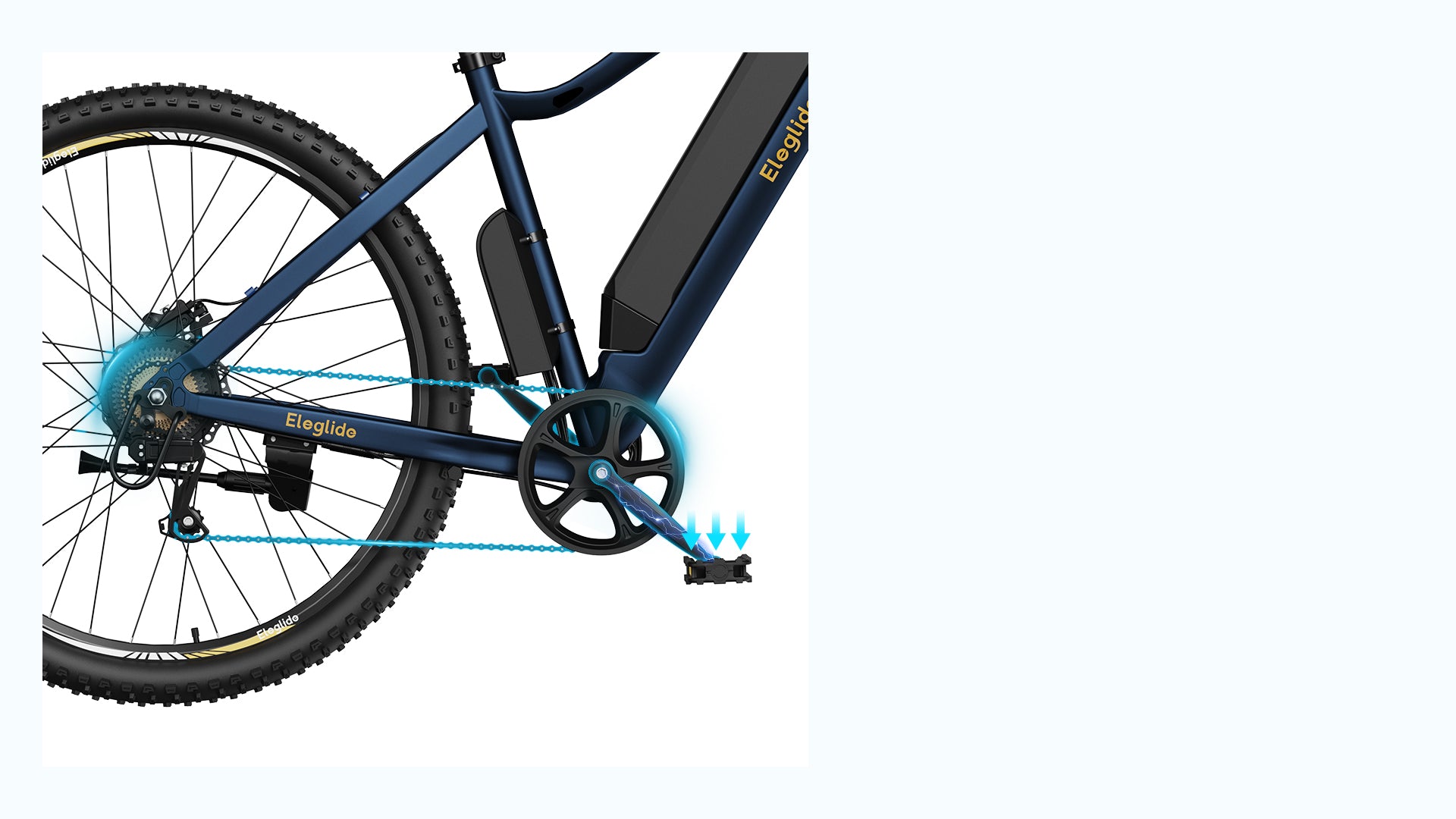

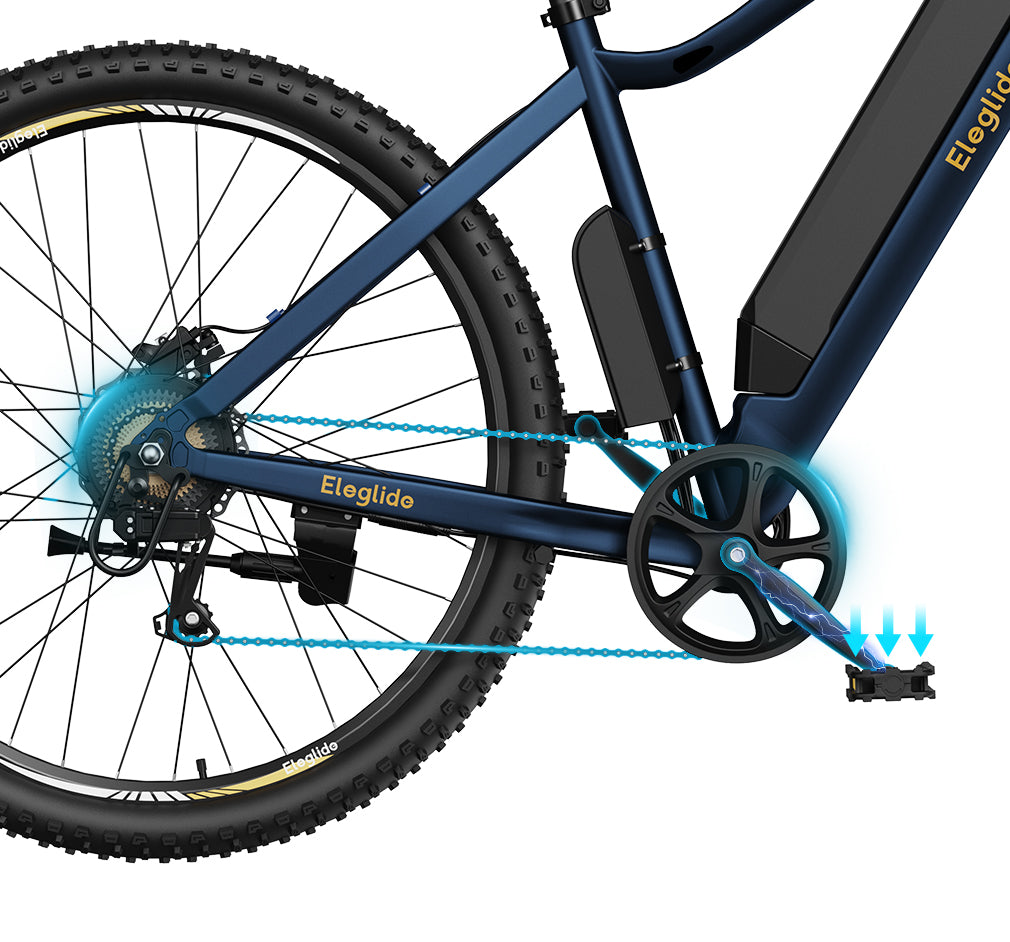

Precise Cadence Sensor

Ensuring unparalleled accuracy and enhanced motor performance by transmitting the signal 12 times per rotation.

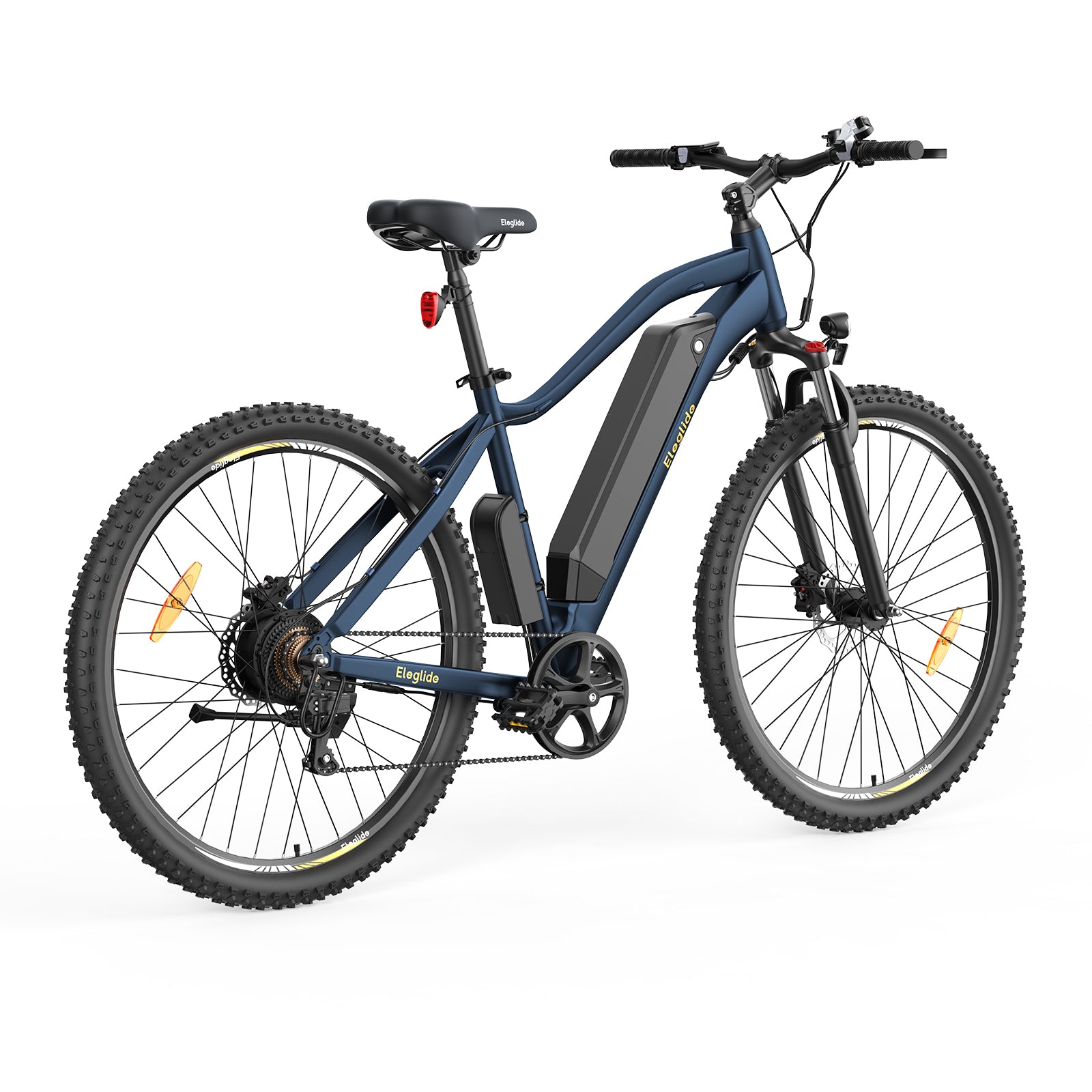

Product Details

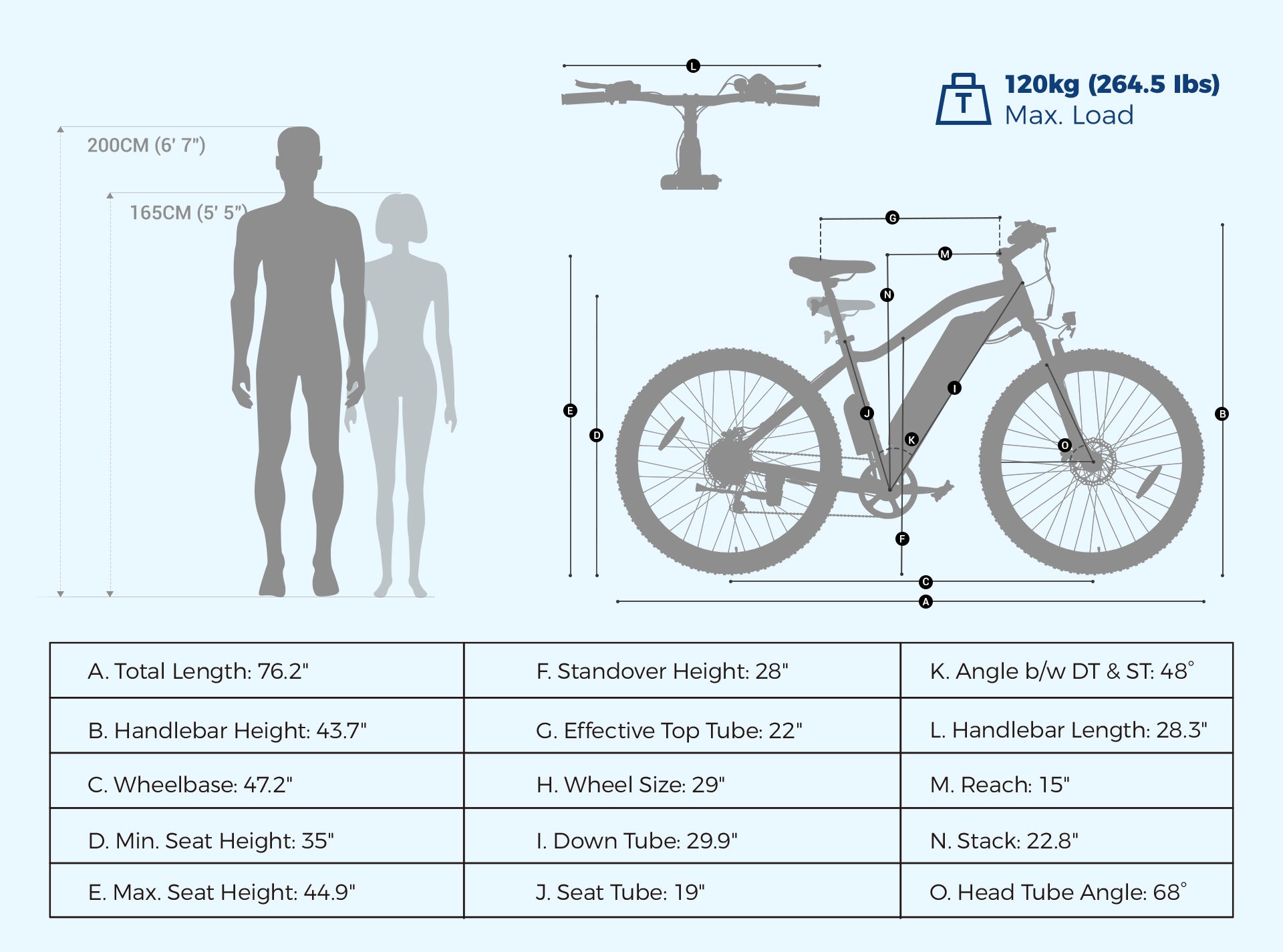

Basic Spec.

Net Weight: 27kg
Unfolded Size: 1900x730x1100mm
Size of Frame: 29" x 19"
Width of Handlebar: 720mm
Recommended Rider Height: 165-200cm (5' 5"-6' 7")
Max Load of Bike: 120kg
Cut-off Speed: 25km/h
Max Range: 120km (Assist Mode)
PAS Levels: 12/15/18/21/25km/h (Level 1-5)
Walk Mode: 6km/h
Waterproof Level: IPX4
Material: Aluminium Alloy
Braking System: Hydraulic Disc Brake & E-brake

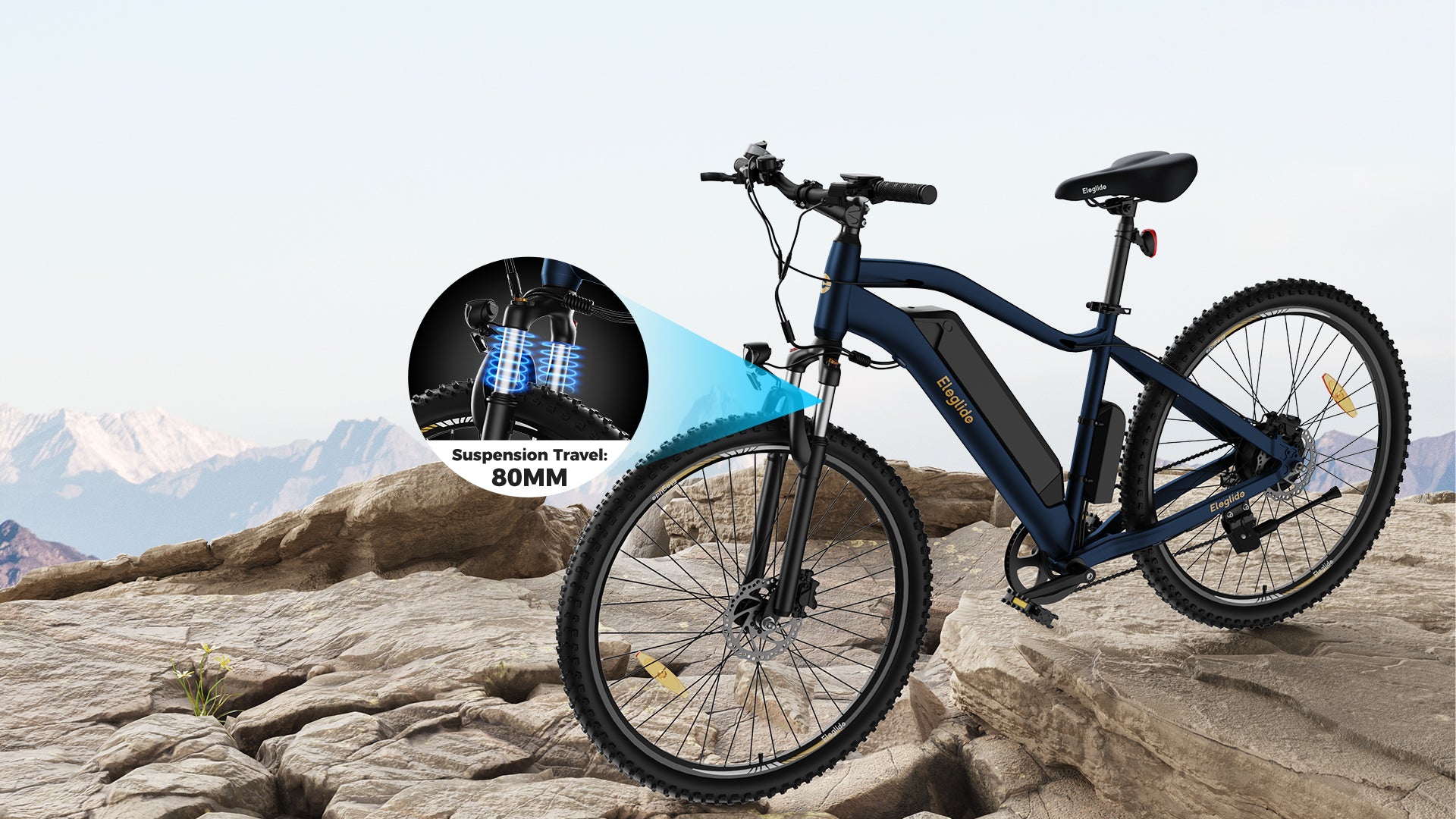

Suspension: Suspension with Lockout
Suspension Travel: 80mm

Motor

Rated Power/Voltage: 250W/48V
Max Output Torque: 50N.M

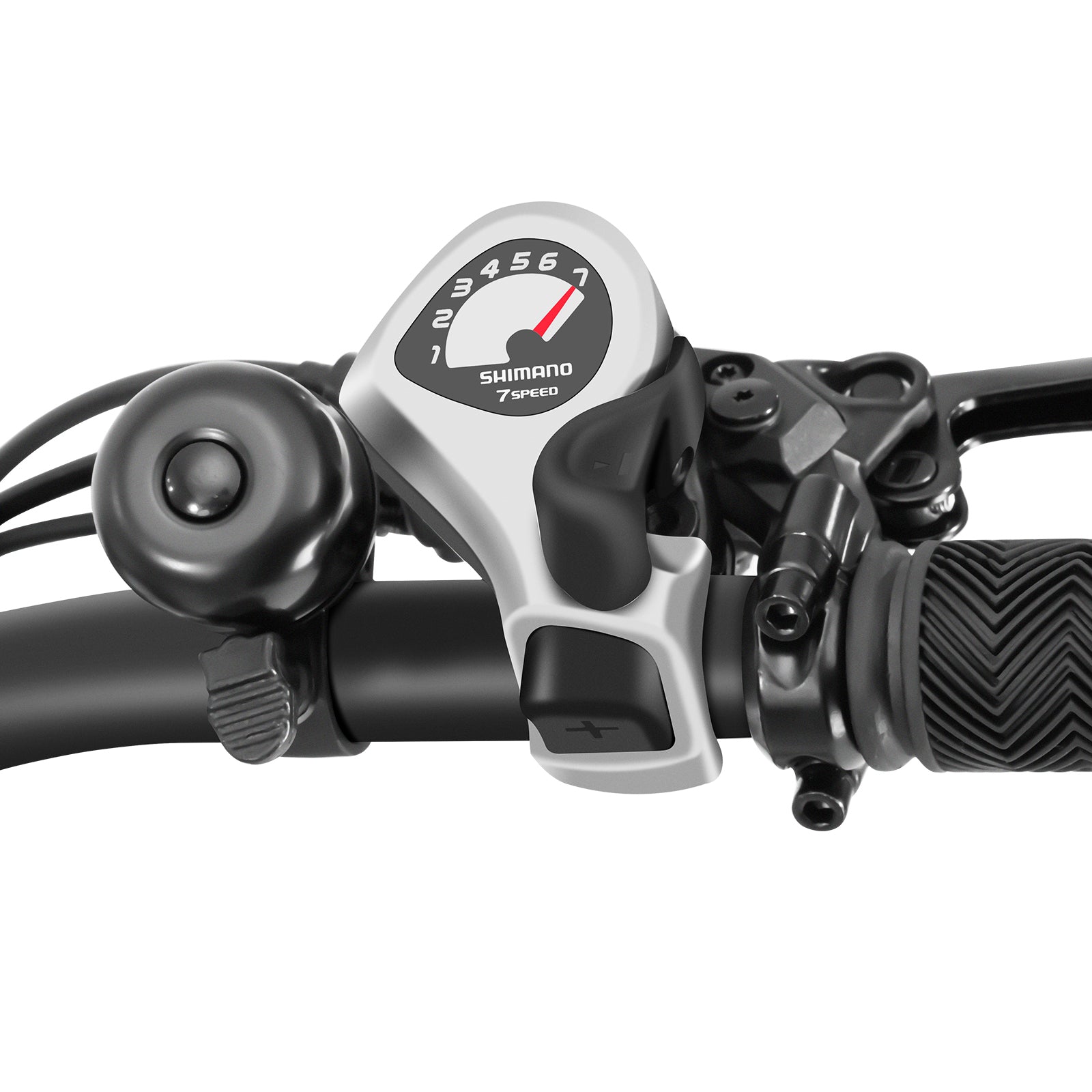

Derailleur

Brand: Shimano
Shifter Quantity: 7(Rear)

Battery

Capacity: 12Ah
Voltage: 48V
Charging Time: 6h
Power Capacity: 576Wh
Protection System: Yes

Tires

Size: 29"x2.4"
Type, Material: Pneumatic Rubber Tires
Tire Pressure: 30-45PSI
Best Tire Pressure: 30-40PSI

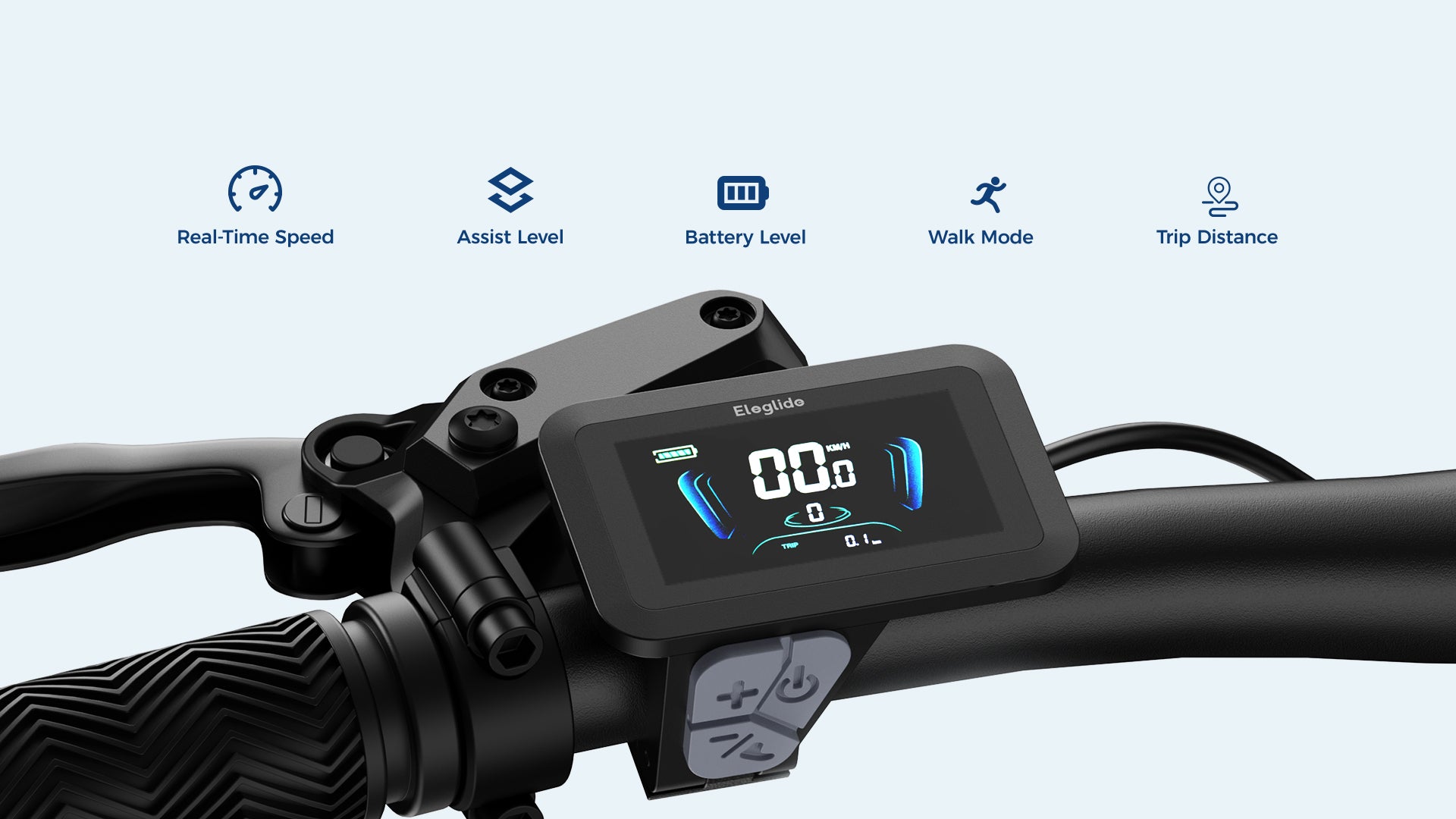

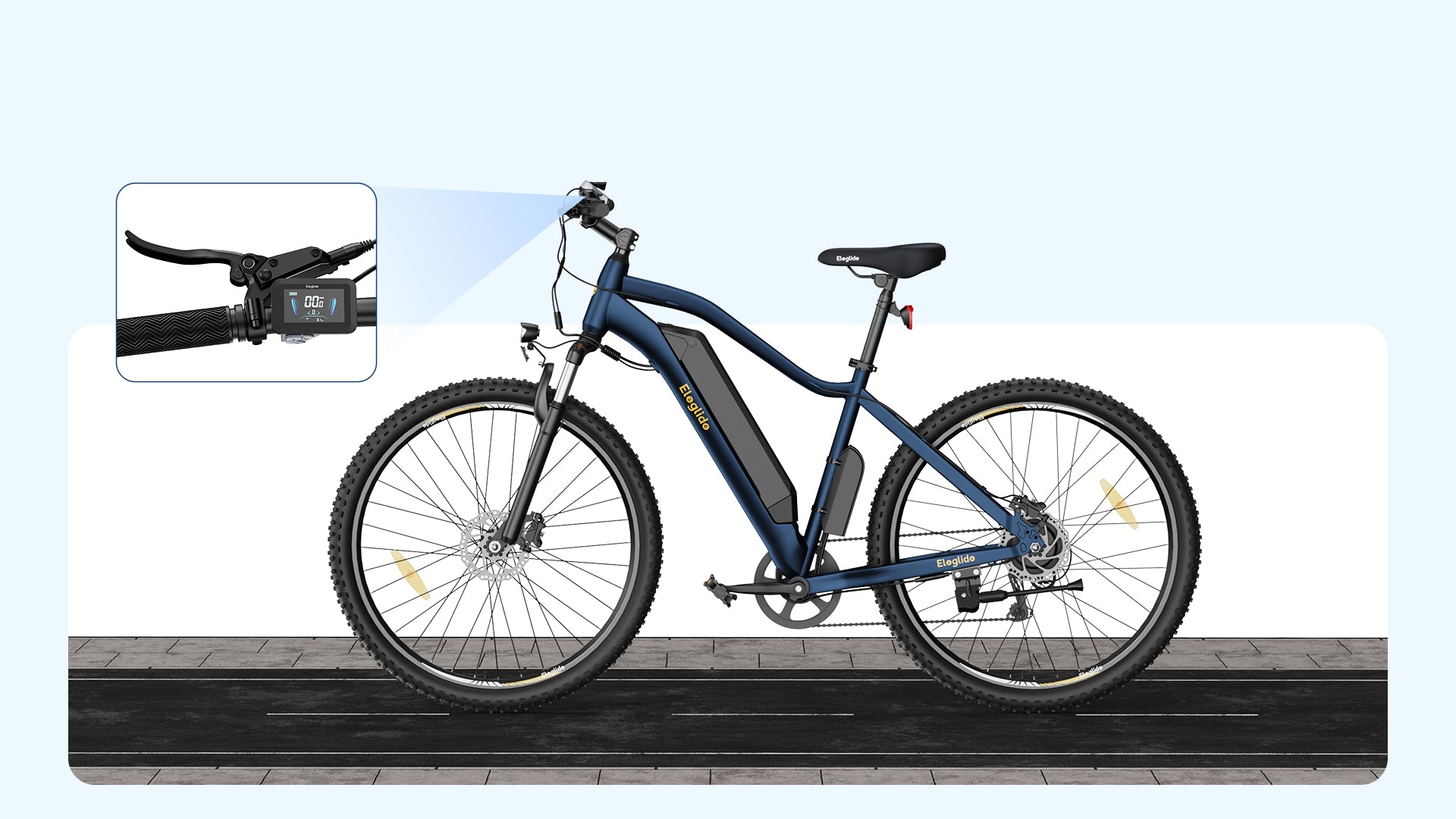

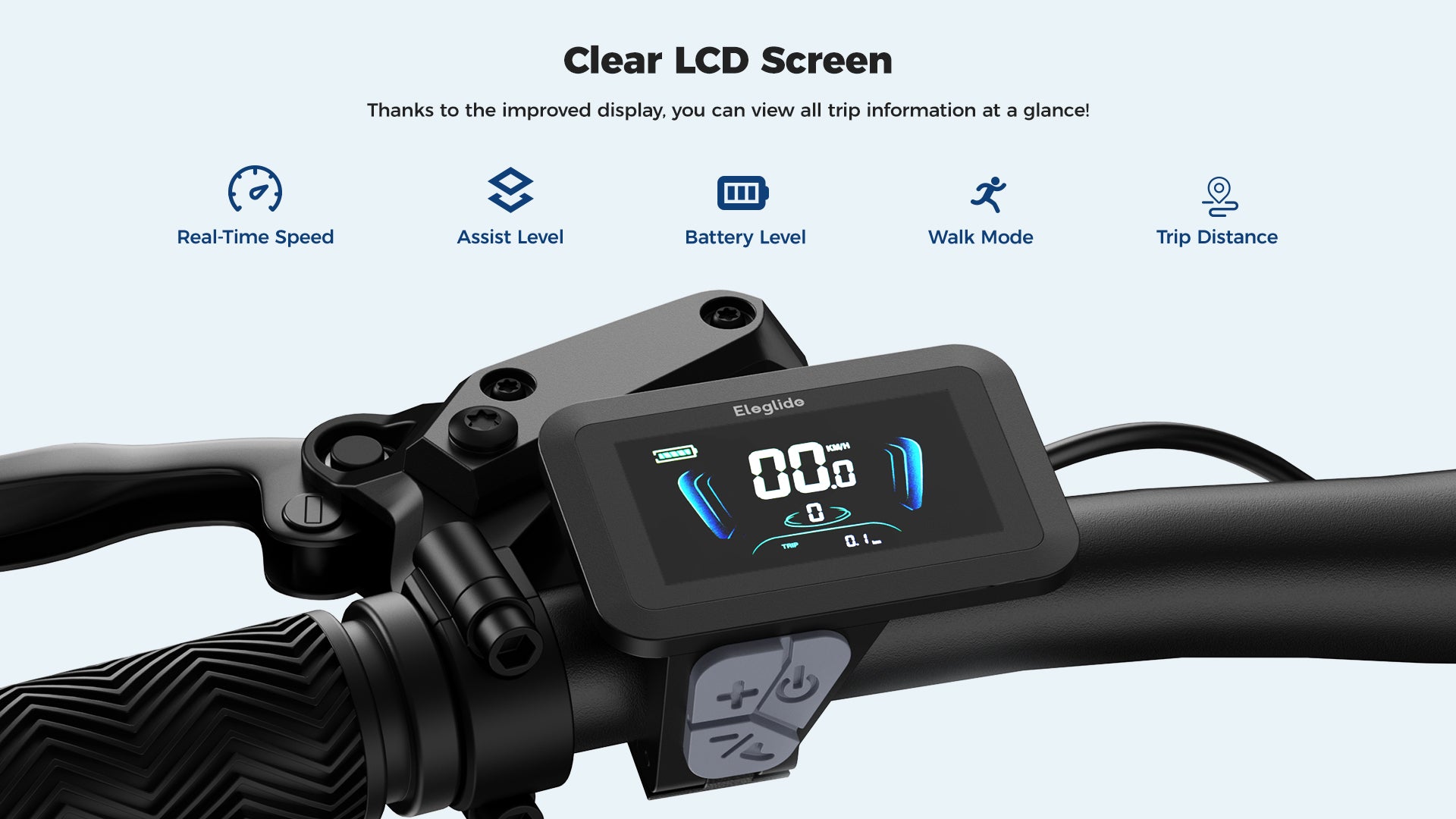

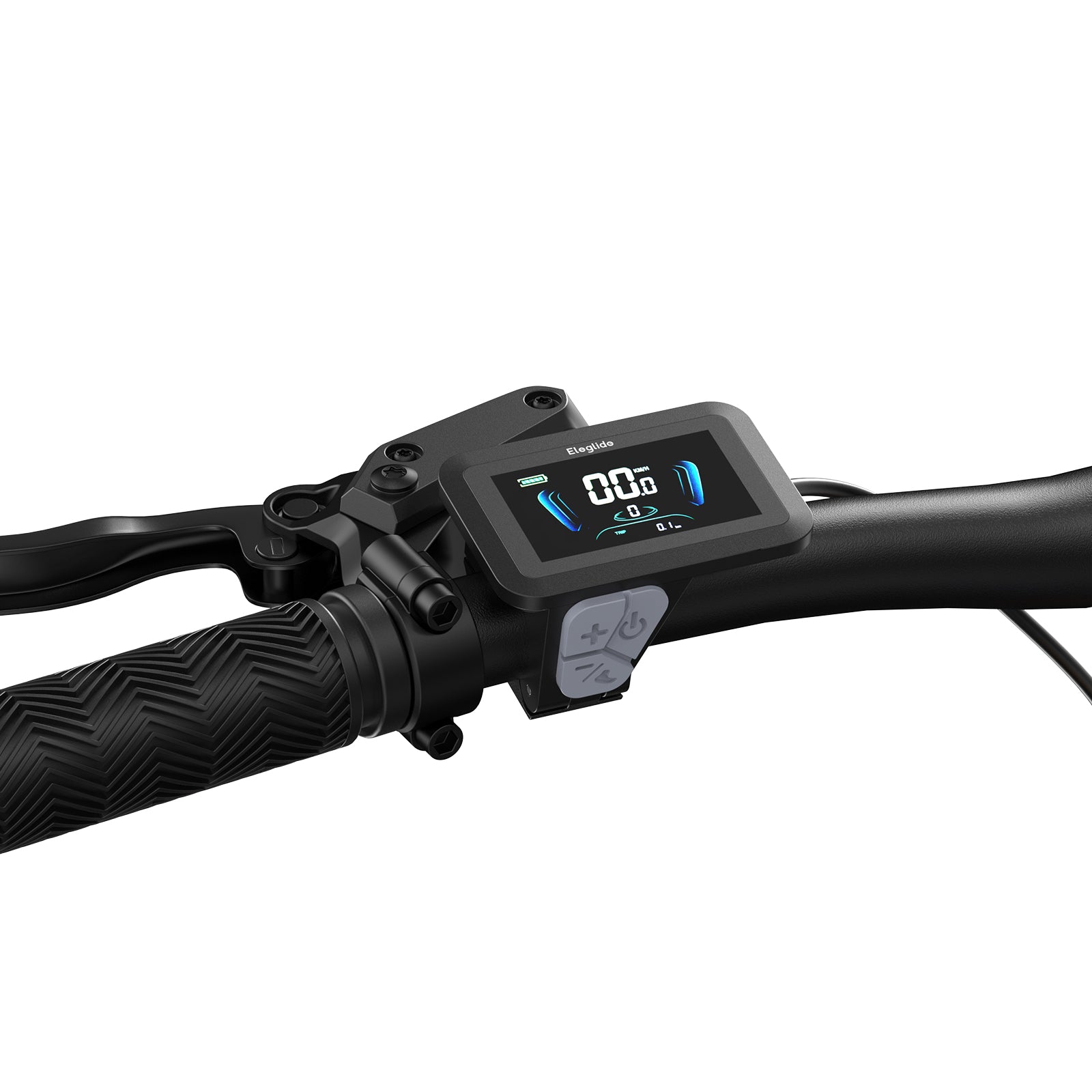

Display

Size: 2.6"
Type: LCD
Information: Real-Time Speed, Assist Level, Battery Level, Walk Mode, Trip Distance
Functions: Power On/Off, Turning Light On/Off, Shifting Assist Levels, Activating Walk Mode, etc.

Charger

Input: 10-240V, ≤1.8A
Output: 42V, 2A

Package List

Size: 160x25x85CM
Gross Weight: 34KG

1 x Eleglide Pedelec
1 x User Manual
1 x Charger
2 x Pedal(Left &Right)
1 x Tool Kit
2 x Key
2 x Spoke Reflector

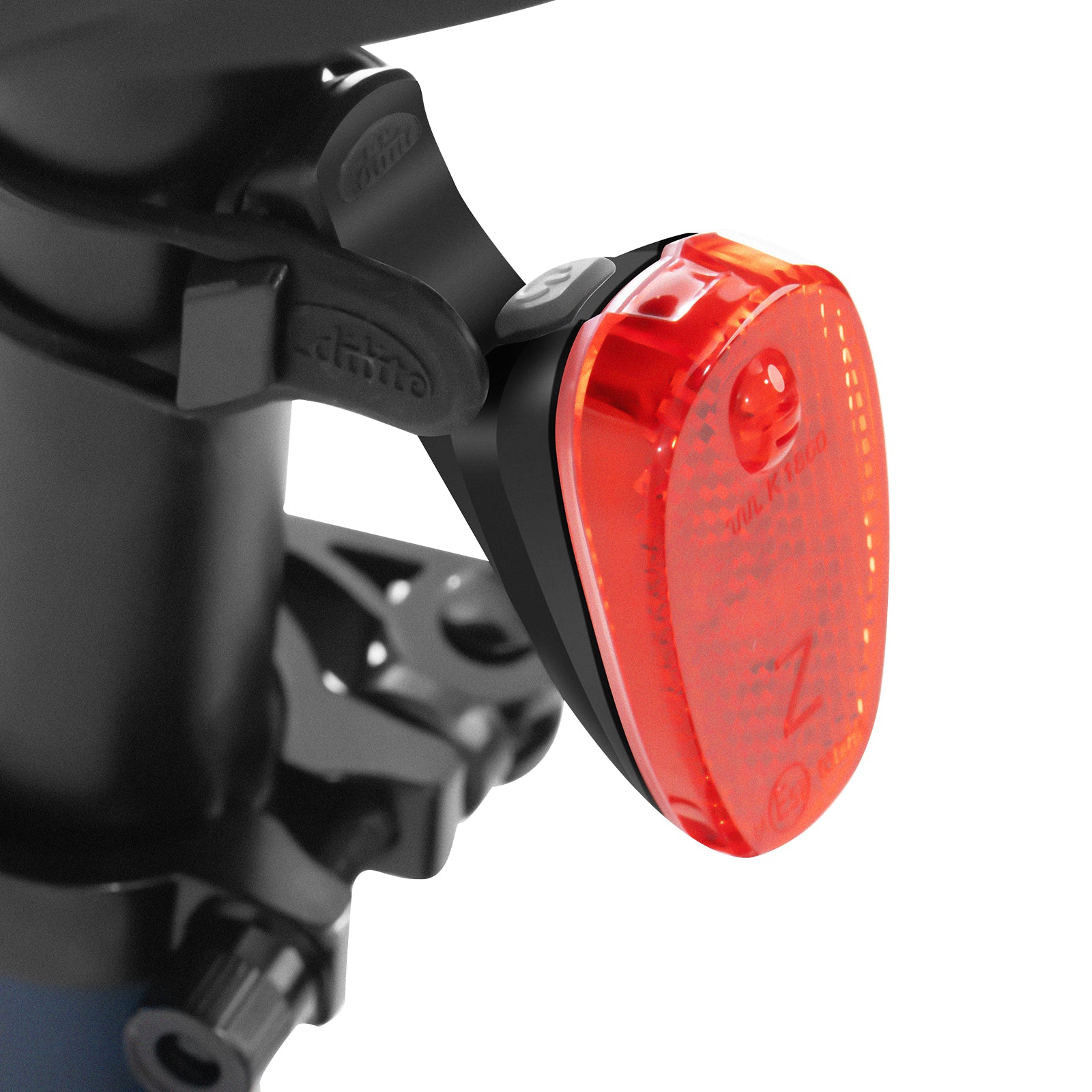

1 x Taillight

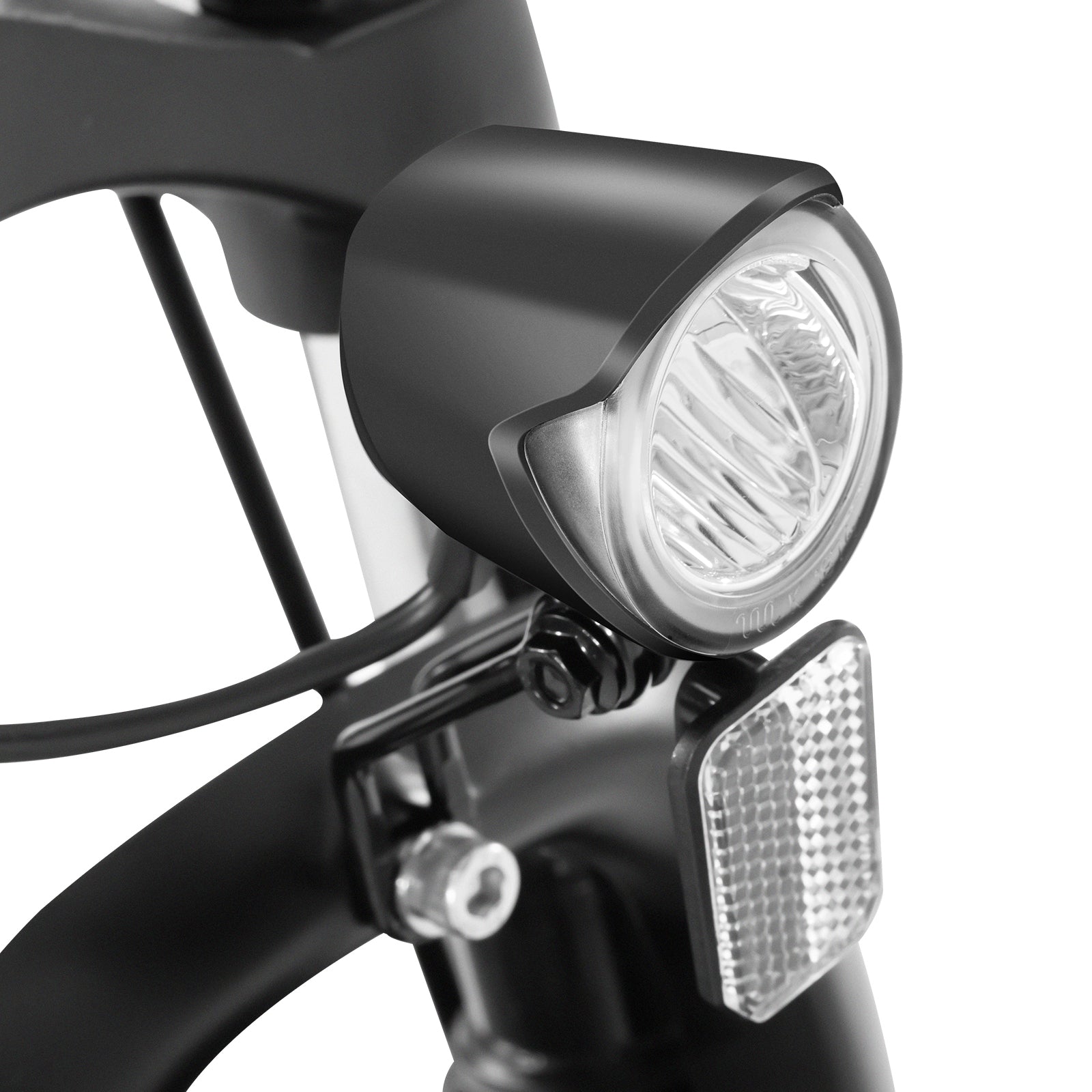

1 x Headlight
