Product Details

Basic Spec.

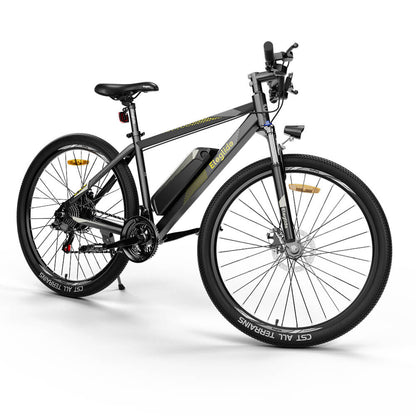

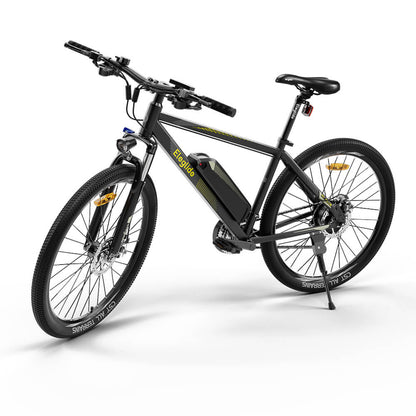

Mopride 1 Plus 27.5"/29"

Net Weight: 21.7kg/22.8kg
Unfolded Size: 1790x680x1041mm/1810x700x1080mm
Size of Frame: 27.5"x18"/29"x19"
Length of Handlebar: 680mm(26.8")
Height of Saddle (from the ground): 33.5"-41.3"/34.3"-41.3"
Recommended Rider Height: 160-195cm (around 5' 3"-6' 4.8")/ 165-200cm (around 5' 5"-6' 6.7")
Max Load of Bike: 120 kg
Cut-off Speed: 25km/h
Max Range: 100km (Assist Mode)
Pedal Assist Levels: 12/15/18/21/25 km/h
Walk Mode: 6km/h
Waterproof Level: IPX4
Material: Aluminium Alloy (AL6061)
Braking System: Front & Rear Disc Brakes + Auto Power-off Design

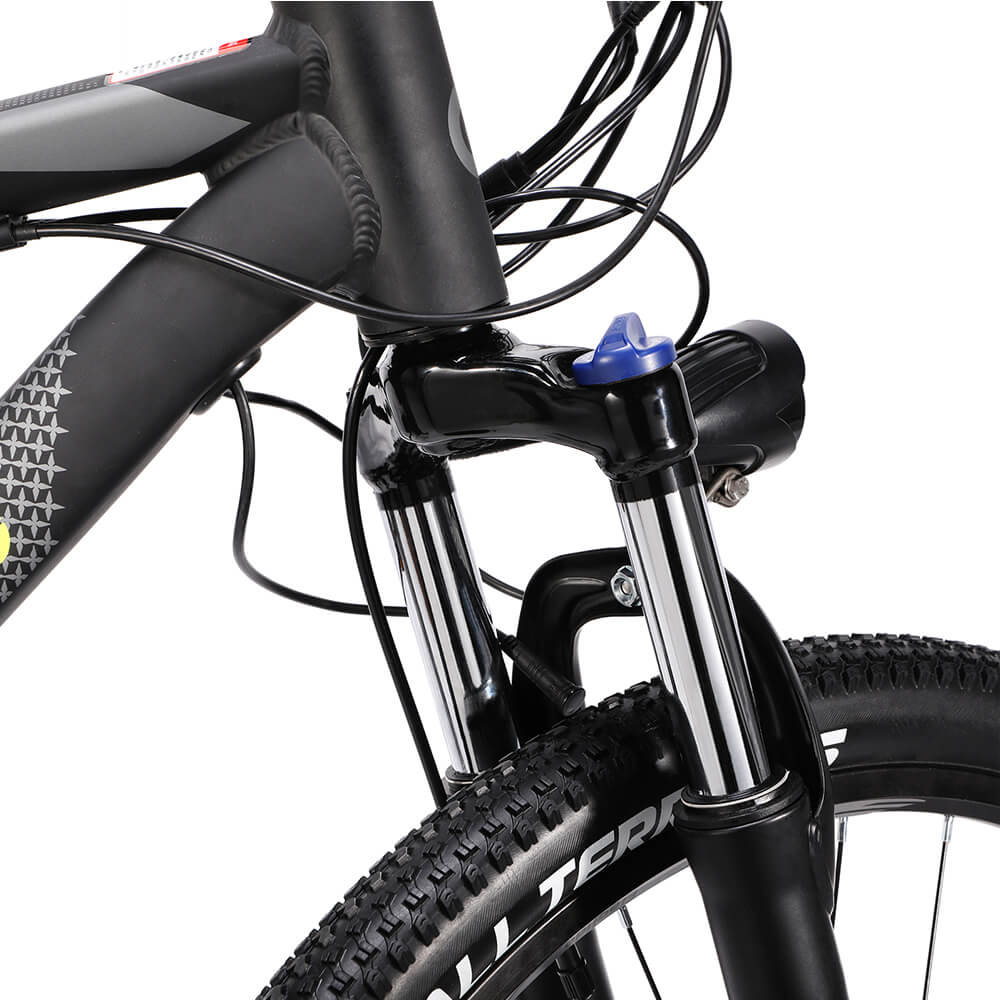

Suspension: Hydraulic Suspension with a Lockout

Motor

Rated Power & Voltage: 250W, DC36V
Max Output Torque: 45N.M

Derailleur

Brand: Shimano
Number of Gears: 3 (Front), 7 (Rear)

Battery

Capacity: 13Ah
Voltage: 36V
Charging Time: 7h
Power Capacity: 468Wh
Protection System: Yes

Tires

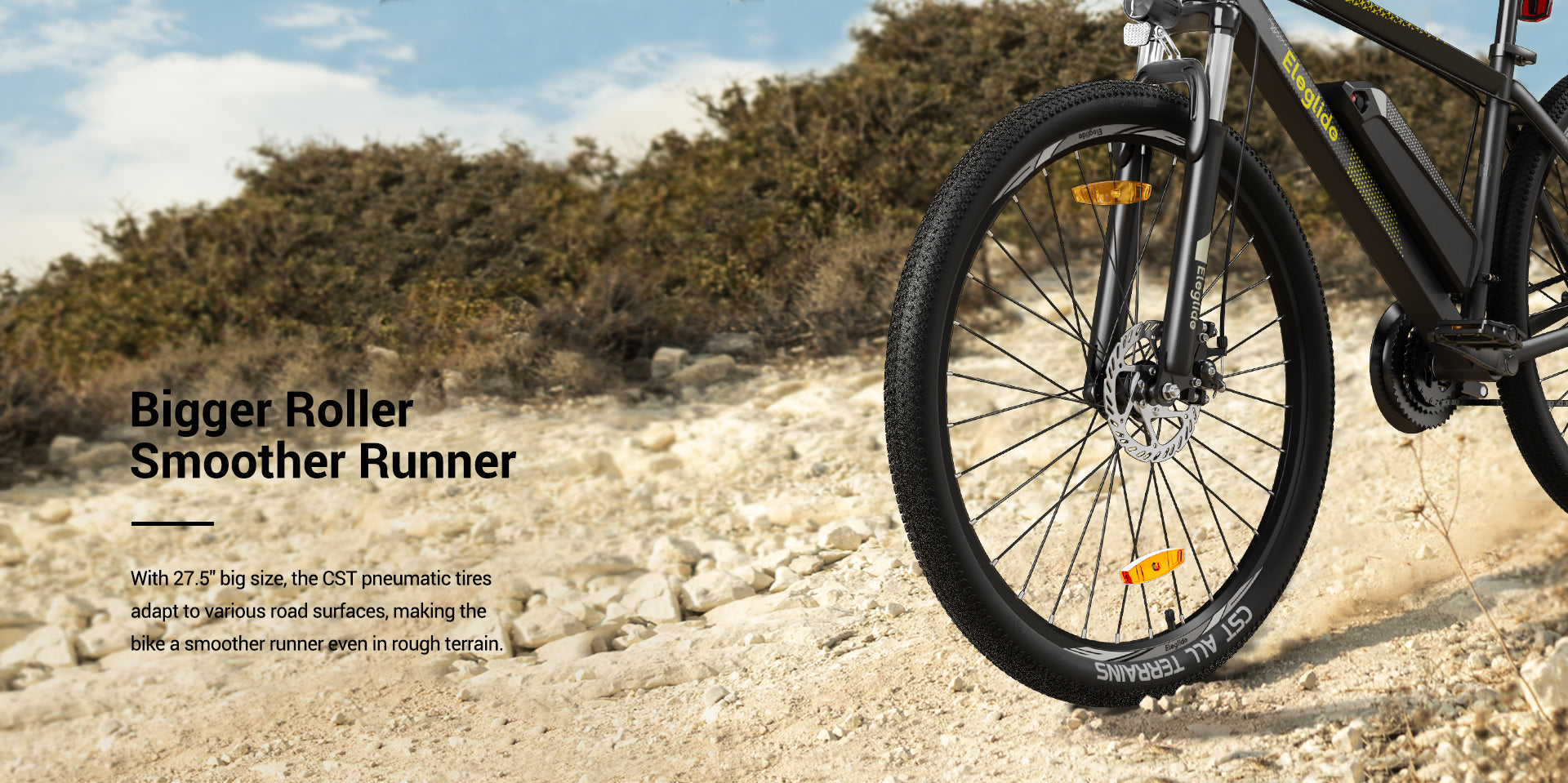

Size: 27.5"x2.1"/29"x2.1"
Type: Pneumatic Rubber Tires with Steel Wires
Tire Pressure: 45-65PSI
Best Tire Pressure: 50PSI (Front), 55PSI (Rear)

Display

Size: 1.8"
Type: LCD
Information: Speed, Battery Level, Trip Distance/Odometer, Assist Level, Walk Mode, Light Mark, Error Code, Brake/Malfunction Mark, etc.
Function: Power on/off, light on/off, shifting assist levels, activating push mode, removing ODO data, setting screen timeout, etc.

Charger

Input: AC100V-240V 50/60Hz 1.8A
Output: 42V, 2A

APP

Name: Eleglide
System Support: iOS (11.0+), Android (5.0+)
Functions: Turning light on/off, shifting assist levels, locking/unlocking the bike, setting password, adjusting screen brightness, etc.

Package List

Size: 1460x250x750mm/1520x250x780mm
Gross Weight: 27kg/29.8kg

1 x E-Bike
1 x User Manual
1 x Charger
2 x Pedal
1 x Headlight
4 x Spoke Reflector
1 x Taillight
2 x Key
1 x Tool Kit
