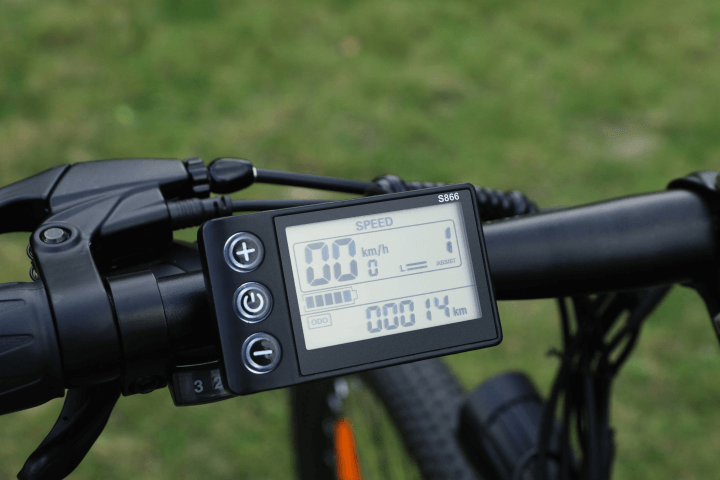

How to Use the Lcd Display of Your M1 Plus

The new version of Eleglide M1 Plus is improved with an intelligent LCD display, which can not only show a variety of information, but also achieve multiple functions for a more enjoyable cycling experience.

Basic Functions & Operations

Power on/off

Long press to turn the machine on/off. When the bicycle isn’t moving and the display hasn’t been used for 10mins, it will turn off all the power automatically.

Light on/off

Long press to turn on/off the LCD backlight and the bike light.

Shifting Speed Level

Short press or to shift among five levels from 1 to 5, including 12, 16, 20, 23 and 25 km/h. It will shift back to the lowest level every time when the display reboots. Level 0 is non-assist mode, which means no electric power. If the bike is in zero start mode, it will go back to level 0 when the display reboots. If it is in non-zero start mode, it will turn to level 1 when the display reboots.

Setting 6km/h Push Mode

Press till the speed mode zone shows “P”. Then the bike will move at a speed no more than 6km/h. The push mode can be turned off by hitting the brake.

Checking More Information

When the LCD display is turned on, short press to shift among ODO, TRIP, VOL and TIME to check their corresponding information, such as trip distance, trip time and real-time battery voltage.

Activating More Functions

First, long press to turn the LCD display on. Then long press and to enter P01 menu. The data shown on the menu can be altered by short pressing or . Then, short press to shift to the next menu. After the adjustment, long press and again to leave the menu page and back to the original page.

P01: adjusting the LCD backlight illuminance; Level 1 is the darkest and level 3 the brightest.

P09: setting the zero/non-zero start; 0 is for zero start and 1 for non-zero start.

P02: changing the mileage unit; 0 is for km, and 1 for mile.

P16: resetting the odometer by pressing for 5 seconds;


  • Graeme A

    I received my bike on Friday . Battery indicator flashing empty. Battery fully charged and not turned a wheel yet. Is this a common fault on display. M1 plus

    Eleglide: Dear customer, you can contact our customer service, experts will support you to solve this problem.

  • Bryan Love

    The LCD display shows a flashing empty battery while the battery is fully charged. It seems to not register what power is in the battery. This is the second LCD screen in under 6 months that has went the same way? Obviously there is a manufacturing fault with this & needs sorted

  • Marko

    Hi, I have display Venus, not s866. How can i set higher speed limit?

  • Anders B

    I have the new lcd + and -, light at the bottom and on/off on top. Not s866… The hidden menu hold + and – and so on shows p01 to p04 in the manual. p01 brightness p02 screen on off timeout p03 speed limit “witch is limited to 0032 max” and p04 starting speed 0 or 1.
    I just want to know what is p05 and p06?

  • Gabriele

    Hi, Can I mount the LCD display on my M1 (no plus) ??

    Eleglide: Sorry, this display is not suitable for M1.
